U17
COMPACT EXCAVATORS

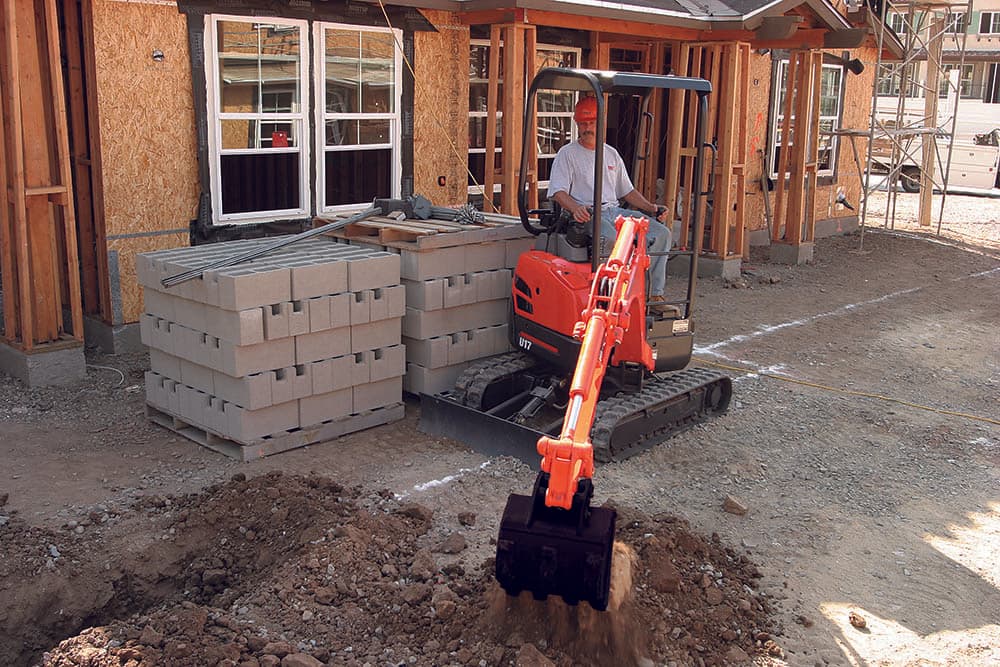

Tough job? Tight spaces? The Kubota U17 Compact Excavator is here to save the day. Standard two speed travel ensures you’re in total control of your excavator and a variable width undercarriage allows for maneuverability through narrow areas such as doors or gates. Rubber tracks make for a smoother ride and from your seat in the comfortable and spacious operator’s station, you’ll make ample use of the U17’s 16.1 horsepower rating. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 48 Months or Save up to $6,000 on Construction Equipment!
Construction
Save up to $6,000 or pay 0% A.P.R. for up to 48 Months with 0% Down on KX AND U SERIES!
EXCAVATORS
Variable Width Undercarriage**
To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can reduce by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.
**Available on U17
Specifications
Arm Breakout Force, Lbs (kgf)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Blade Height, In (mm)
Blade Width, Ft (mm)
Bucket Breakout Force, Lbs (kgf)
Crawler Length, Ft (mm)
Displacement (cu. In.)
Engine Model
Fuel Reservoir, Gal (l)
Ground Contact Pressure Psi, Kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, Gal (l)
Min. Ground Clearance, In (mm)
Operating Weight, Lbs (kg)
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Pump Capacity, G P M ( L P M)
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Arm Breakout Force, Lbs (kgf)
1918 (870)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
7.32 (27.7)
Blade Height, In (mm)
10.3 in (260)
Blade Width, Ft (mm)
4 ft 1 in (1240) / 3 ft 3 in (990)
Bucket Breakout Force, Lbs (kgf)
3417.2 (1550)
Crawler Length, Ft (mm)
5 ft 2 in (1585)
Displacement (cu. In.)
54.8
Engine Model
Kubota D902-E4
Fuel Reservoir, Gal (l)
5.02 (19)
Ground Contact Pressure Psi, Kgf (cm2)
3.8 (0.27)
Horsepower (gross)
16.1
Hydraulic Oil Reservoir / System, Gal (l)
5.02 (19)
Min. Ground Clearance, In (mm)
5.9in (150)
Operating Weight, Lbs (kg)
3703 (1680)
Overall Height, Ft (mm)
7 ft 8 in (2340)
Overall Length, Ft (mm)
11 ft 7 in (3545)
Overall Width, Ft (mm)
3 ft 3 in (990) / 4 ft 1 in (1240)
Pump Capacity, G P M ( L P M)
4.57 (17.3) × 2 / 2.75 (10.4) × 1
Traveling Speed: High, Mph (kph)
1.4 (2.2)
Traveling Speed: Low, Mph (kph)
2.6 (4.0)
