TE6576CD

TE6576CD

TEDDERS

Call for Pricing

Extended Warranty

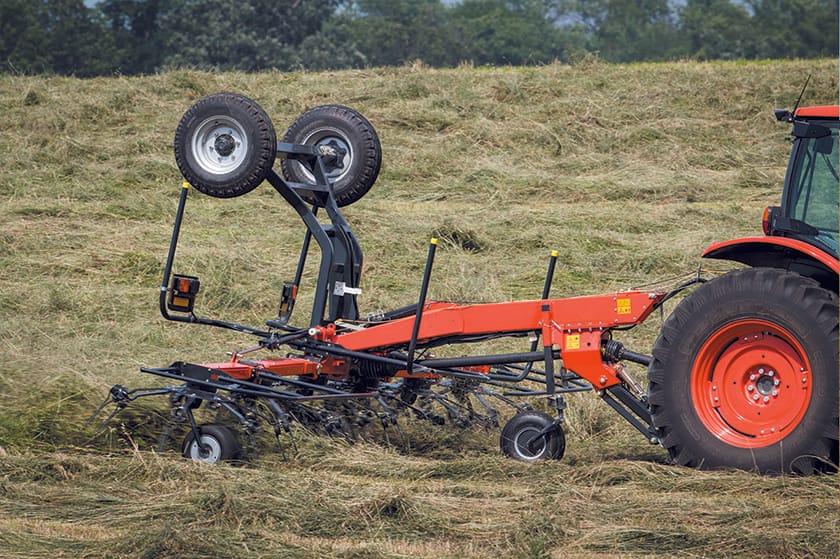

To harvest the highest quality hay, look to the Kubota TE6576CD. A maintenance-free, oil immersed gearbox relieves the rugged box chassis of stress and means less time servicing your tedder and more time out in the field. Don’t let the 24’ 11” working width intimidate you, the carried drawbar makes transport easy with a transport width of 9’9” and hydraulically folded in wheels. The TE6576CD’s pulled tailbar is ideal for lower horsepower tractors and can accomplish so much in your hay drying process.

Build

My Equipment

Download

Specifications

Compare

Specifications

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • TEDDER SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota TE Series!

    TEDDER SERIES
High Performance, Low Input

High Performance, Low Input

The TE6576CD and TE8511C offer working widths of 24'11" and 36'1" respectively. With a pull type drawbar on the TE6576CD and a 2-pt hitch on the TE8511C, they are easy to attach to your tractor. They are still ideal for low horsepower tractors due to their trailed design, which minimizes compaction and operating cost.

Unique Transport Solution

Unique Transport Solution

Switching working to transport is fast and easy. The TE6576CD's transport wheels fold hydraulically toward the center of the machine, providing a low center of gravity for improved balance. When it’s time to transport the TE8511C to the next field, the outer rotors are folded forward onto a carrier frame. The carrier frame allows the tedder to move forward quickly and easily from one field to another. Both models have a transport width of 9'9".

TE6576CD

TE6576CD

HP

Call for Pricing

Specifications

Adjustment Of Spreading Angle

Standard

Cab Contr. Border Clearing System, Hydr.

Standard

Cab Contr. Border Clearing System, Mech.

N/A

Capacity Theor. Acres/h

15.1

Farm Line

N/A

Front Wheel (16x6.50-8)

Standard

Linkage Drawbar

N/A

Number Of Rotors

8

Number Of Tine Arms/ Rotors

7

Pro Line

Standard

Reduction Gearbox For Night Windrows

Optional

Storage Height Ft. (m)

13' 2" (4)

Tandem Axles

N/A

Three- Point, Tracking

N/A

Tine Adjustment System

Standard

Tires On Central Unit

18.5x8.5-8

Transport Length Ft. (m)

14' 9" (4.5)

Transport Width Ft. (m)

9' 9" (2.9)

Two- Point, Linkage Arms

Cat II

Vibration Damper/ Integral Lock

N/A

Warning Panels

N/A

Warning Panels With Integr. Lighting

Standard

Weight Lbs. (kg)

2646 (1200)

Wheels (4)

16x6.5-8

Width, Working Position Ft.

25' 7" (7.8)

Working Width Ft. (m)

24' 11" (7.6)
